Industrial IoT

Product Line



FWIP wall mount front right-2W.png



Our team was tasked with revamping and relaunching an entire line of rugged, Industrial-grade IoT devices based on a modular, reconfigurable printed circuit boards. The client’s existing family of products were changing internally and they wanted their designs to reflect the modernization.

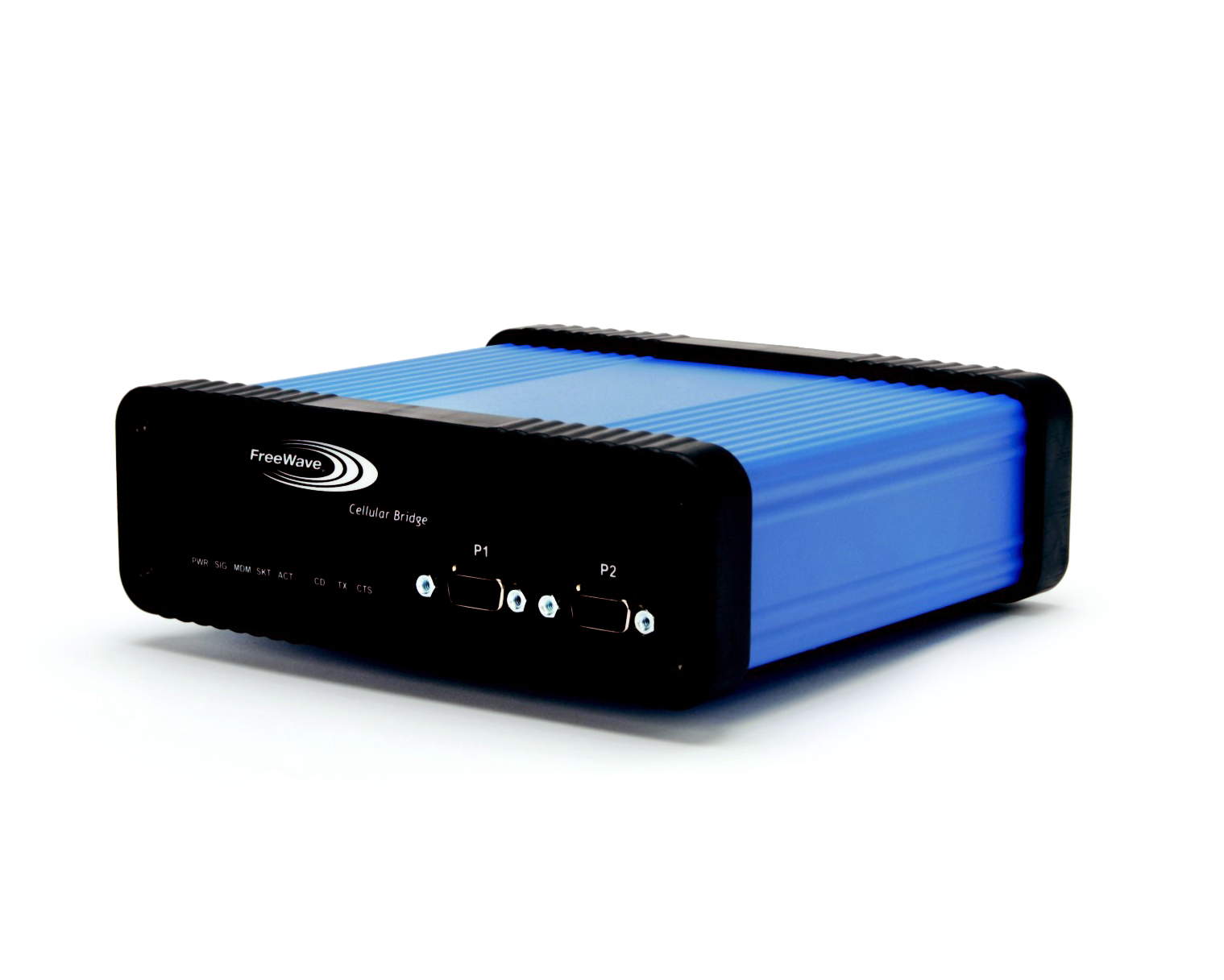

Previous Products







Printed Circuit Board set

We were provided a set of boards with a few configurations around which to build.

FWIP Boards w chassis.png

Plastic Chassis

We began by building a plastic chassis to suspend and protect the board-sets.








WavePoint 10e


The first product to emerge from our team was the WavePoint 10e. As a junior designer, I cut my teeth facilitating the manufacture of this enclosure.

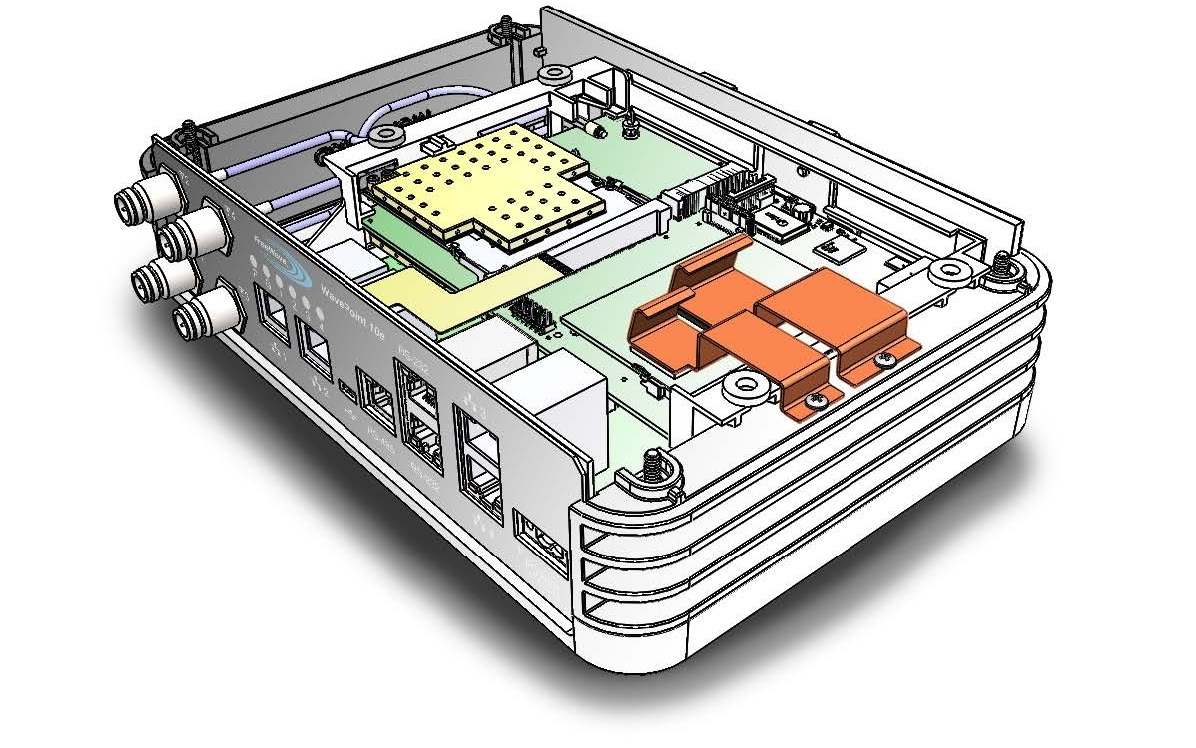

FWWO Heat Sink Assembly.jpg

The enclosure is comprised of a four-part die-cast aluminum body, aluminum plates front and rear, plus copper heat sinks that transfer processor heat to the functional outer fins.








WavePoint Outdoor

After production began on the 10e, our client wanted an IP67-rated outdoor version that could be mounted to a radio tower or outside on a building. I lead the designing of a sealed, clamshell enclosure that adhered to the new family image. Additionally, it required that we build it to accept the 10e plastic PCB chassis, account for visibility of the heat sink’s alignment during assembly, and create 2 mounting configurations; “pole-mount” and “wall-mount.”

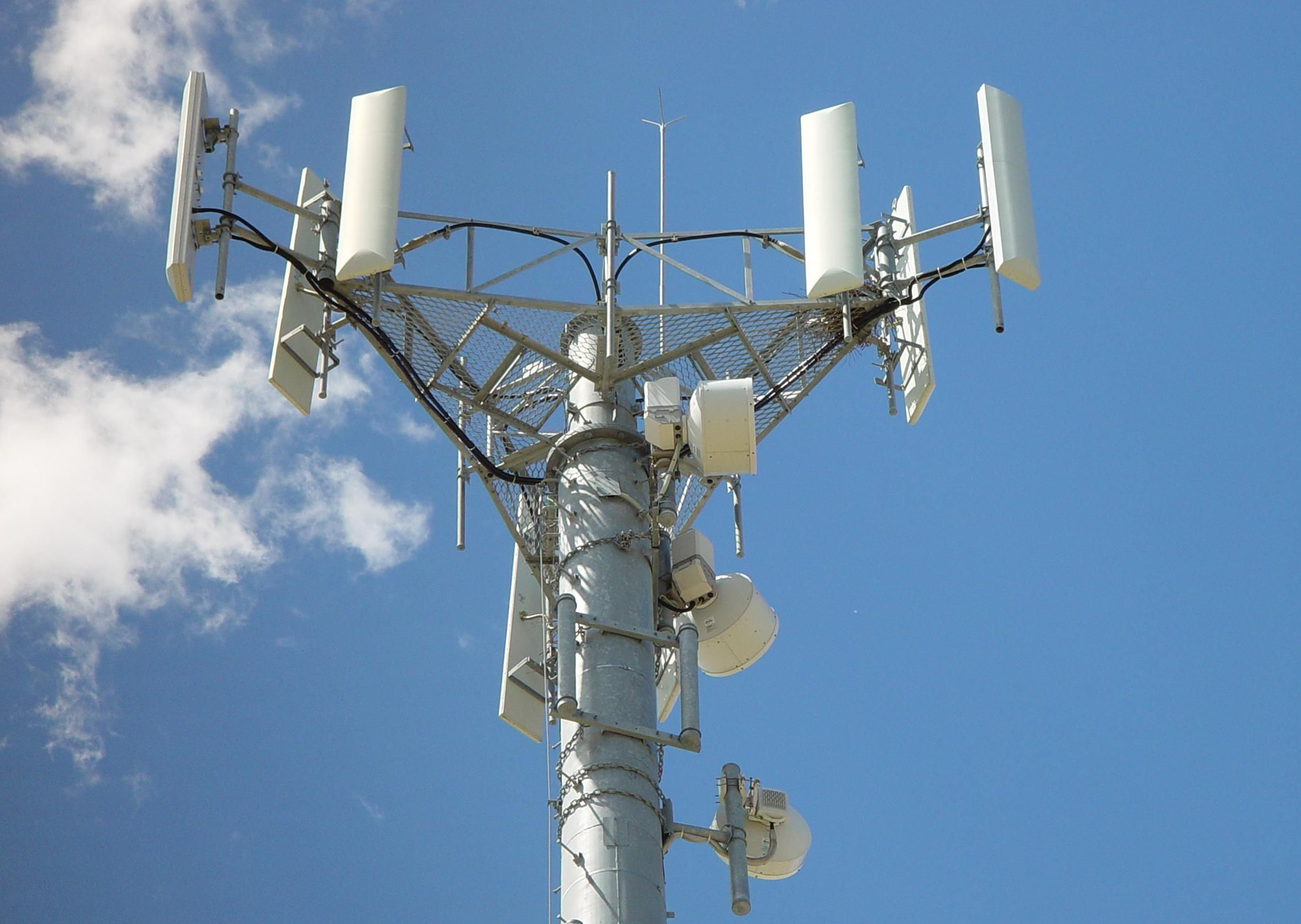

Context

The WavePoint Outdoor model needed to perform all the functions of the Wavepoint 10e and be durable enough to weather the elements in a variety of climates





Concept renderings


FWIP wall mount front.png

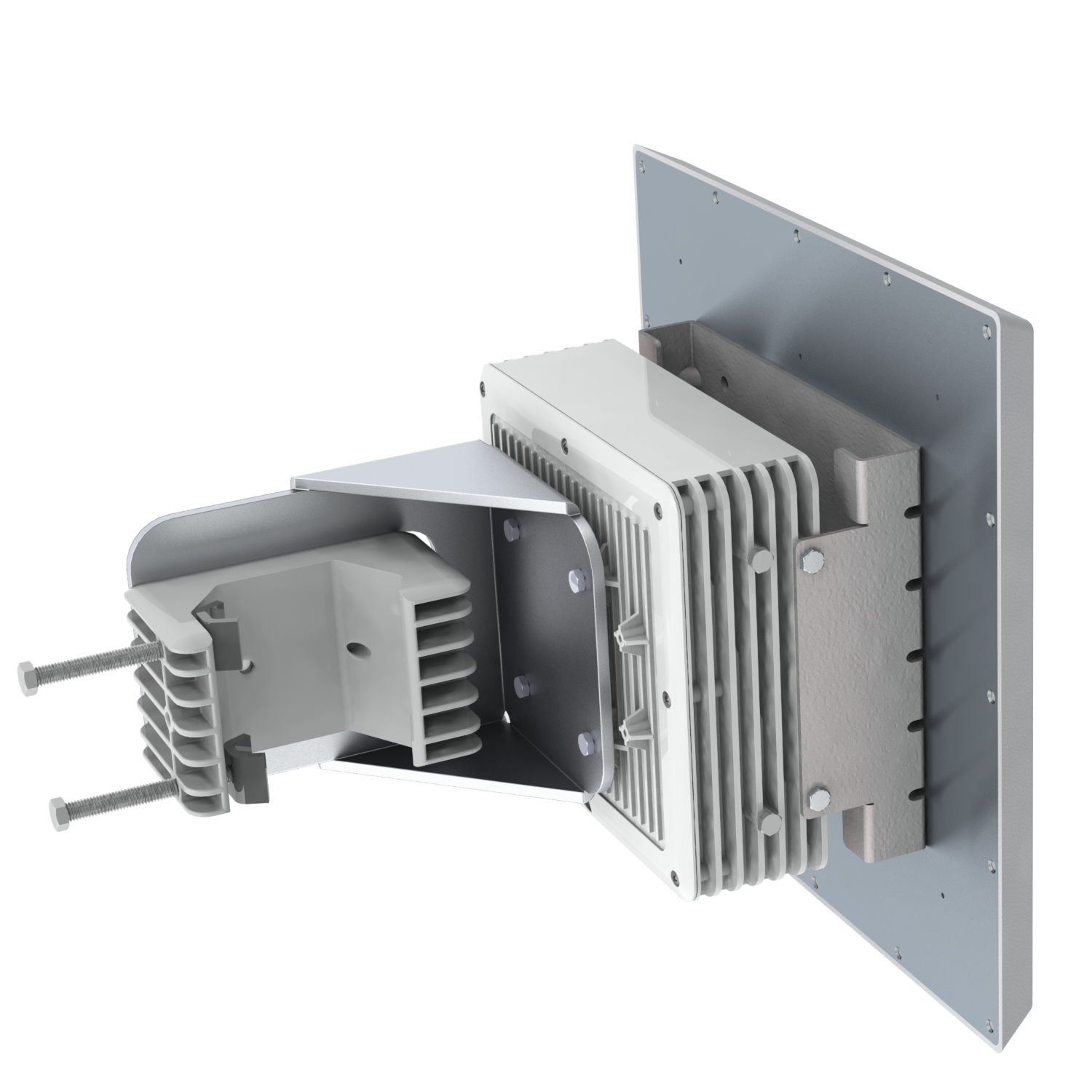

FWIP New Bracket.png




Exploded Views



FWIP Portfolio Page L-01.png
FWIP Portfolio Page R-01.png

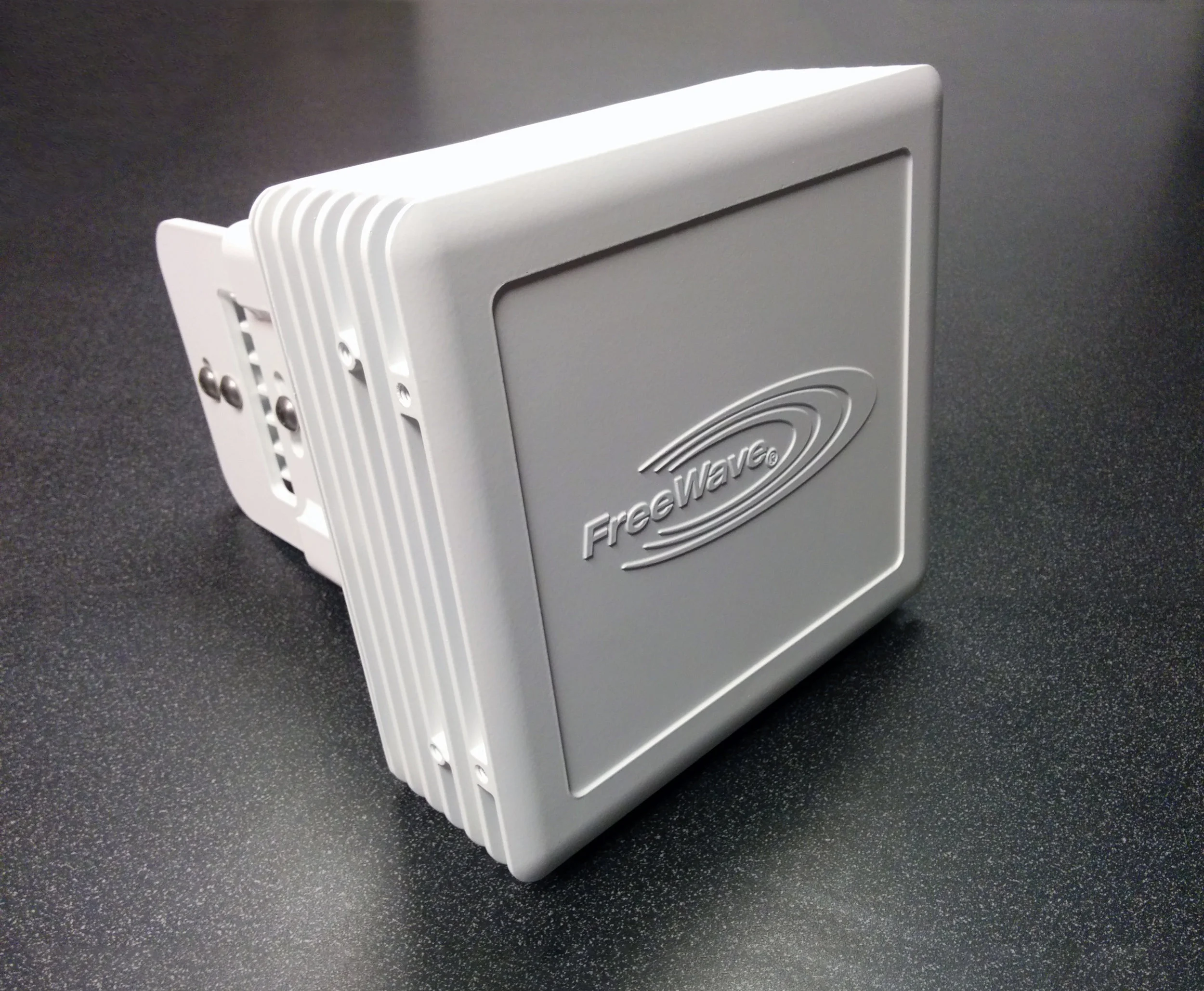

Prototype









WavePoint 20e

Some months later, this same client required a smaller version of the 10e with reduced frequencies. I led the design of a new board chassis and simplified enclosure with a stackable, modular center section.



FW20e- three quarter view.png

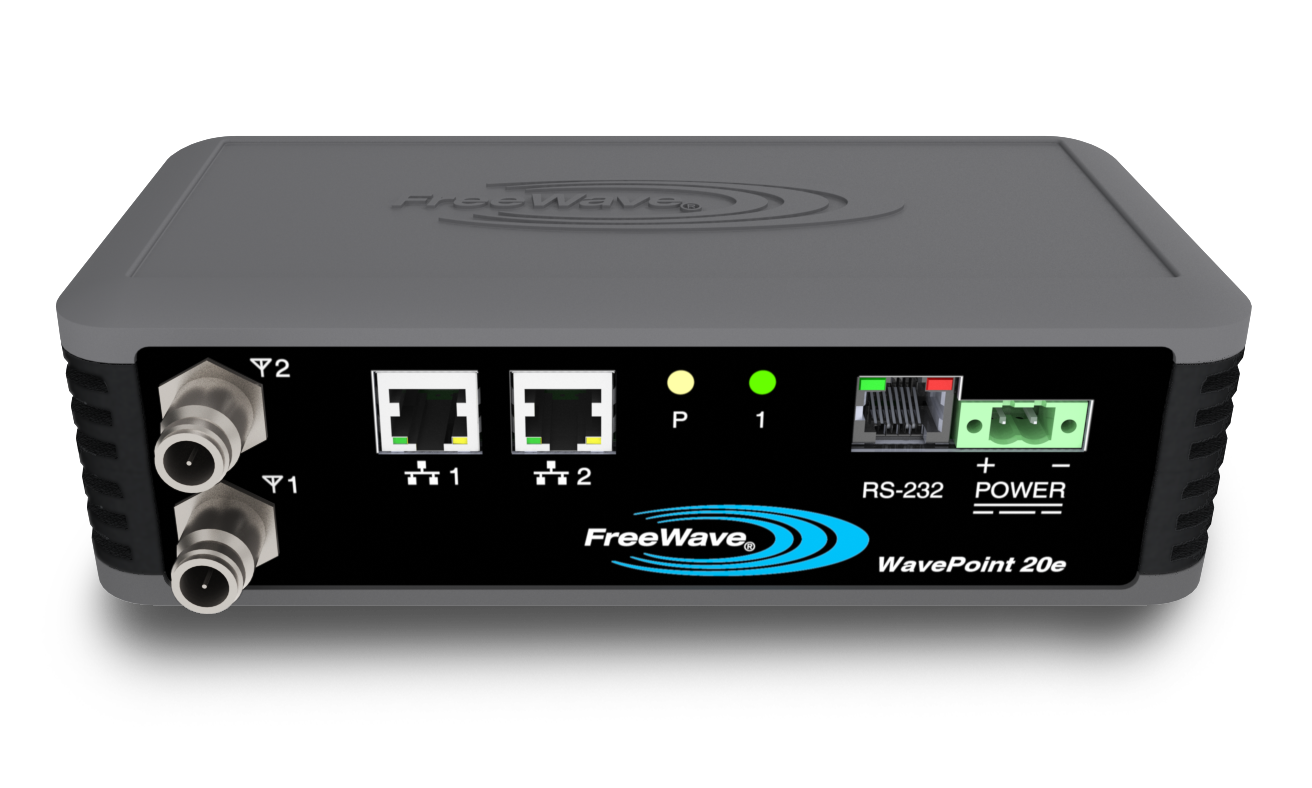

FW20e- Front view.png

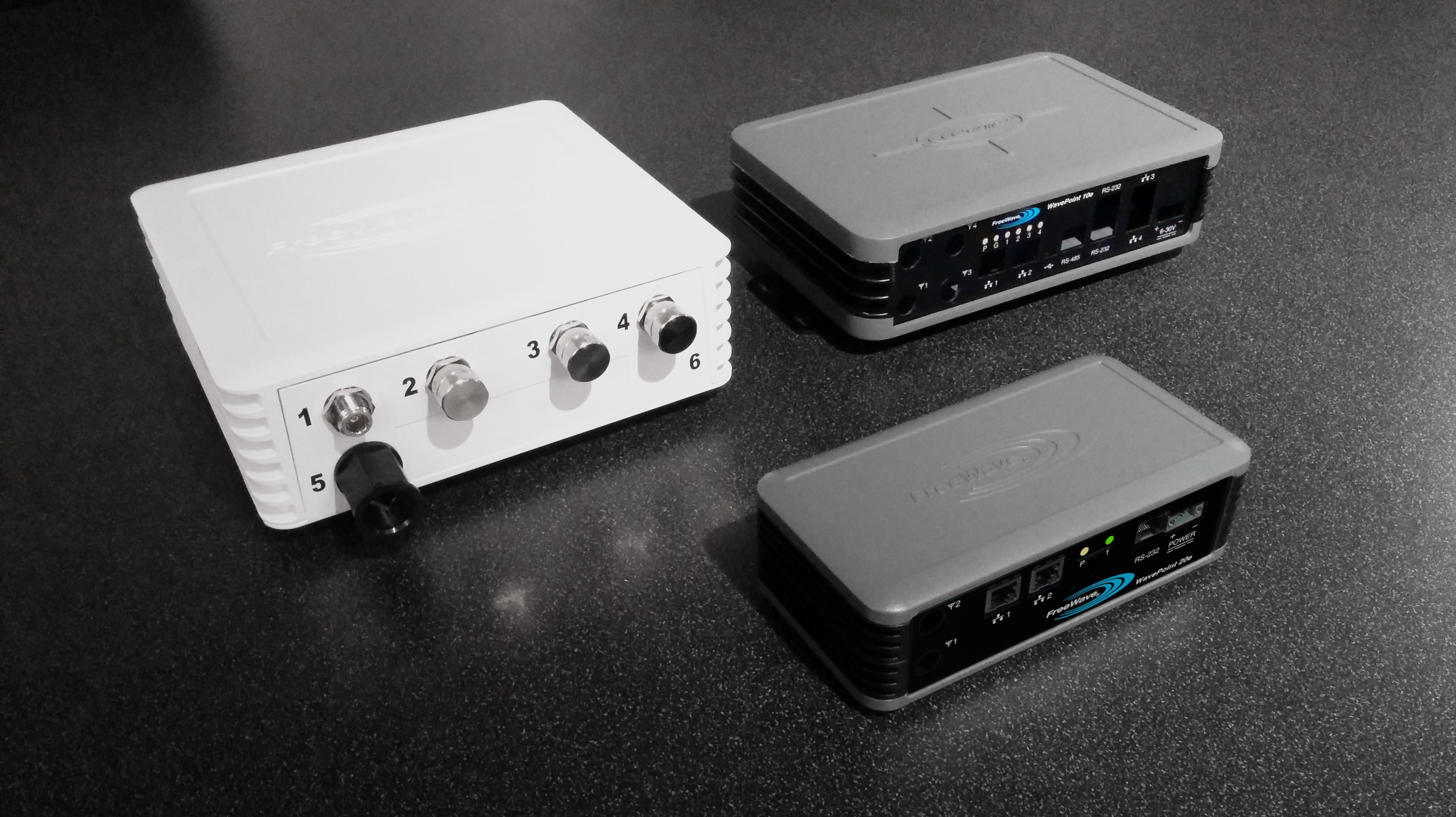

Finished Product Line

All 3.png
